852-10-082-30-002101
Preci-Dip
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 82POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 852-10-082-30-002101 Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$12.1634
- 50$10.624
Quote It
Technical Details
- Series:852
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:82
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.118" (3.00mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.075" (1.90mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Brass
- Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1A
- Voltage Rating:150VDC
Related Products
CONN HEADER VERT 6POS 2.54MM
- 1: $12.16980
- 50: $12.02040
CONN HEADER VERT 6POS 2.54MM
- 1: $12.16980
- 50: $12.02040

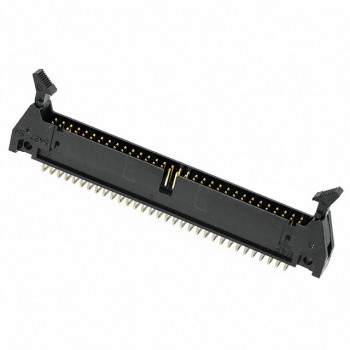

CONN HEADER R/A 64POS 2.54MM
