350-90-110-00-006000

Mill-Max
In Stock: 185

Can ship immediately

Pricing:
  • 1$12.1968
  • 50$12.0384

Quote It

Technical Details

  • Series:350
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.142" (3.61mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.394" (10.00mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin-Lead
  • Contact Finish Thickness - Mating:200.0µin (5.08µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0713086092

CONN HEADER SMD 92POS 2.54MM

0713086092 Datasheet
  • 1: $12.19933
  • 1296: $12.19933

852-90-008-10-001000

CONN HEADER VERT 8POS 1.27MM

852-90-008-10-001000 Datasheet
  • 1: $12.20043
  • 50: $12.16260

854-80-120-10-001101

CONN HEADER VERT 120POS 1.27MM

854-80-120-10-001101 Datasheet
  • 1: $12.20320
  • 50: $11.23800

832-10-004-30-052000

CONN HEADER SMD 4POS 2MM

832-10-004-30-052000 Datasheet
  • 1: $12.20580
  • 50: $12.14640

N3428-D302RB

CONN HEADER R/A 20POS 2.54MM

N3428-D302RB Datasheet
  • 1: $12.20600

854-10-120-20-001101

CONN HEADER R/A 120P 1.27MM

854-10-120-20-001101 Datasheet
  • 1: $12.20639
  • 48: $12.20639

M80-5411442

CONN HEADER R/A 14POS 2MM

M80-5411442 Datasheet
  • 1: $12.20670
  • 506: $12.20670

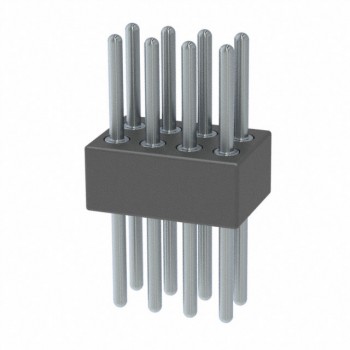

852-40-008-10-001000
