832-40-074-30-001000
Mill-Max- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 74POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 832-40-074-30-001000 Datasheet
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
- 1$20.8966
- 50$20.346
Quote It
Technical Details
- Series:832
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:74
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.142" (3.61mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.110" (2.79mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:200.0µin (5.08µm)
- Contact Finish - Post:Tin
- Contact Material:Brass Alloy
- Insulation Material:Polyamide (PA46), Nylon 4/6
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

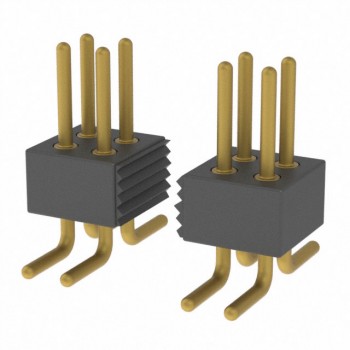

MET STD SIG HDR
