832-10-098-30-052000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant

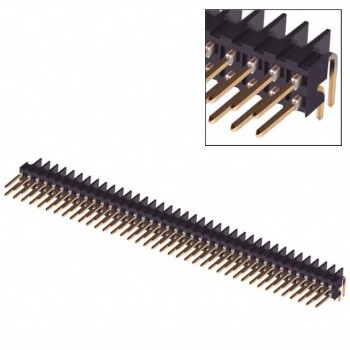

- DescriptionCONN HEADER SMD 98POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 832-10-098-30-052000 Datasheet
-
ECAD Model
- Share
In Stock: 123
Can ship immediately
Pricing:
- 1$25.686
- 50$24.7126
Quote It
Technical Details
- Series:832
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:98
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.138" (3.50mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.276" (7.00mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Brass Alloy
- Insulation Material:Polyphenylene Sulfide (PPS)
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
