In Stock: 150

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:23
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.420" (10.67mm)
  • Overall Contact Length:0.838" (21.29mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PTC22SFDN

CONN HEADER VERT 22POS 2.54MM

PTC22SFDN Datasheet

Call for price


PTC21SFDN

CONN HEADER VERT 21POS 2.54MM

PTC21SFDN Datasheet

Call for price


PTC20SFDN

CONN HEADER VERT 20POS 2.54MM

PTC20SFDN Datasheet

Call for price


PTC19SFDN

CONN HEADER VERT 19POS 2.54MM

PTC19SFDN Datasheet

Call for price


PTC18SFDN

CONN HEADER VERT 18POS 2.54MM

PTC18SFDN Datasheet

Call for price


PTC17SFDN

CONN HEADER VERT 17POS 2.54MM

PTC17SFDN Datasheet

Call for price


PTC16SFDN

CONN HEADER VERT 16POS 2.54MM

PTC16SFDN Datasheet

Call for price


PTC15SFDN

CONN HEADER VERT 15POS 2.54MM

PTC15SFDN Datasheet

Call for price


PTC14SFDN

CONN HEADER VERT 14POS 2.54MM

PTC14SFDN Datasheet

Call for price

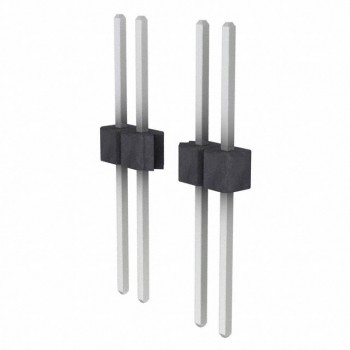

PTC13SFDN
