In Stock: 173

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:36
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.450" (11.43mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PZC35SAAN

CONN HEADER VERT 35POS 2.54MM

PZC35SAAN Datasheet

Call for price


PZC34SAAN

CONN HEADER VERT 34POS 2.54MM

PZC34SAAN Datasheet

Call for price


PZC33SAAN

CONN HEADER VERT 33POS 2.54MM

PZC33SAAN Datasheet

Call for price


PZC32SAAN

CONN HEADER VERT 32POS 2.54MM

PZC32SAAN Datasheet

Call for price


PZC31SAAN

CONN HEADER VERT 31POS 2.54MM

PZC31SAAN Datasheet

Call for price


PZC30SAAN

CONN HEADER VERT 30POS 2.54MM

PZC30SAAN Datasheet

Call for price


PZC29SAAN

CONN HEADER VERT 29POS 2.54MM

PZC29SAAN Datasheet

Call for price


PZC28SAAN

CONN HEADER VERT 28POS 2.54MM

PZC28SAAN Datasheet

Call for price


PZC27SAAN

CONN HEADER VERT 27POS 2.54MM

PZC27SAAN Datasheet

Call for price

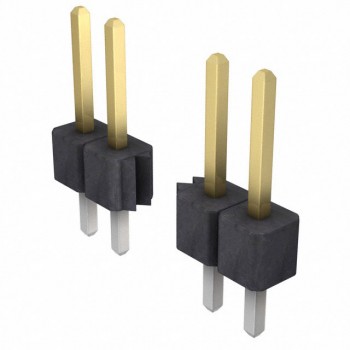

PZC26SAAN
