In Stock: 118

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:19
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.230" (5.84mm)
  • Overall Contact Length:0.560" (14.22mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PZC18SABN

CONN HEADER VERT 18POS 2.54MM

PZC18SABN Datasheet

Call for price


PZC17SABN

CONN HEADER VERT 17POS 2.54MM

PZC17SABN Datasheet

Call for price


PZC18SAEN

CONN HEADER VERT 18POS 2.54MM

PZC18SAEN Datasheet

Call for price


PZC16SABN

CONN HEADER VERT 16POS 2.54MM

PZC16SABN Datasheet

Call for price


PZC15SABN

CONN HEADER VERT 15POS 2.54MM

PZC15SABN Datasheet

Call for price


PZC14SABN

CONN HEADER VERT 14POS 2.54MM

PZC14SABN Datasheet

Call for price


PZC17SAEN

CONN HEADER VERT 17POS 2.54MM

PZC17SAEN Datasheet

Call for price


PZC13SABN

CONN HEADER VERT 13POS 2.54MM

PZC13SABN Datasheet

Call for price


PZC16SAEN

CONN HEADER VERT 16POS 2.54MM

PZC16SAEN Datasheet

Call for price

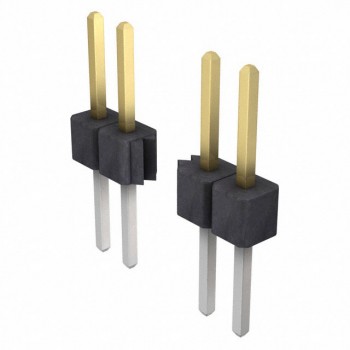

PZC12SABN
