In Stock: 127

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:15
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.820" (20.83mm)
  • Overall Contact Length:1.150" (29.21mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PZC14SAHN

CONN HEADER VERT 14POS 2.54MM

PZC14SAHN Datasheet

Call for price


PZC13SAHN

CONN HEADER VERT 13POS 2.54MM

PZC13SAHN Datasheet

Call for price


PZC12SAHN

CONN HEADER VERT 12POS 2.54MM

PZC12SAHN Datasheet

Call for price


PZC11SAHN

CONN HEADER VERT 11POS 2.54MM

PZC11SAHN Datasheet

Call for price


PZC10SAHN

CONN HEADER VERT 10POS 2.54MM

PZC10SAHN Datasheet

Call for price


PZC09SAHN

CONN HEADER VERT 9POS 2.54MM

PZC09SAHN Datasheet

Call for price


PZC08SAHN

CONN HEADER VERT 8POS 2.54MM

PZC08SAHN Datasheet

Call for price


PZC07SAHN

CONN HEADER VERT 7POS 2.54MM

PZC07SAHN Datasheet

Call for price

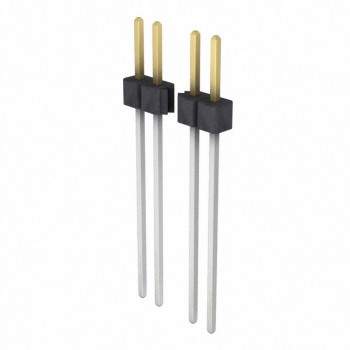

PZC06SAHN
