In Stock: 107

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:30
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.538" (13.67mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PZC29SFAN

CONN HEADER VERT 29POS 2.54MM

PZC29SFAN Datasheet

Call for price


PZC28SFAN

CONN HEADER VERT 28POS 2.54MM

PZC28SFAN Datasheet

Call for price


PZC27SFAN

CONN HEADER VERT 27POS 2.54MM

PZC27SFAN Datasheet

Call for price


PZC26SFAN

CONN HEADER VERT 26POS 2.54MM

PZC26SFAN Datasheet

Call for price


PZC25SFAN

CONN HEADER VERT 25POS 2.54MM

PZC25SFAN Datasheet

Call for price


PZC24SFAN

CONN HEADER VERT 24POS 2.54MM

PZC24SFAN Datasheet

Call for price


PZC23SFAN

CONN HEADER VERT 23POS 2.54MM

PZC23SFAN Datasheet

Call for price


PZC22SFAN

CONN HEADER VERT 22POS 2.54MM

PZC22SFAN Datasheet

Call for price


PZC21SFAN

CONN HEADER VERT 21POS 2.54MM

PZC21SFAN Datasheet

Call for price

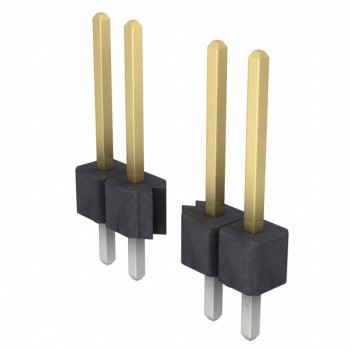

PZC20SFAN
