In Stock: 128

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:12
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.538" (13.67mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PZC11SFAN

CONN HEADER VERT 11POS 2.54MM

PZC11SFAN Datasheet

Call for price


PZC10SFAN

CONN HEADER VERT 10POS 2.54MM

PZC10SFAN Datasheet

Call for price


PZC09SFAN

CONN HEADER VERT 9POS 2.54MM

PZC09SFAN Datasheet

Call for price


PZC08SFAN

CONN HEADER VERT 8POS 2.54MM

PZC08SFAN Datasheet

Call for price


PZC07SFAN

CONN HEADER VERT 7POS 2.54MM

PZC07SFAN Datasheet

Call for price


PZC06SFAN

CONN HEADER VERT 6POS 2.54MM

PZC06SFAN Datasheet

Call for price


PZC05SFAN

CONN HEADER VERT 5POS 2.54MM

PZC05SFAN Datasheet

Call for price


PZC04SFAN

CONN HEADER VERT 4POS 2.54MM

PZC04SFAN Datasheet

Call for price


PZC03SFAN

CONN HEADER VERT 3POS 2.54MM

PZC03SFAN Datasheet

Call for price

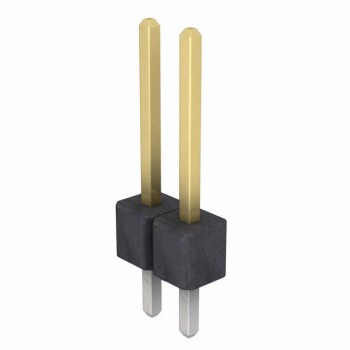

PZC02SFAN
