In Stock: 101

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:35
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.320" (8.13mm)
  • Overall Contact Length:0.738" (18.75mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PZC34SFCN

CONN HEADER VERT 34POS 2.54MM

PZC34SFCN Datasheet

Call for price


PZC30SFBN

CONN HEADER VERT 30POS 2.54MM

PZC30SFBN Datasheet

Call for price


PZC33SFCN

CONN HEADER VERT 33POS 2.54MM

PZC33SFCN Datasheet

Call for price


PZC29SFBN

CONN HEADER VERT 29POS 2.54MM

PZC29SFBN Datasheet

Call for price


PZC32SFCN

CONN HEADER VERT 32POS 2.54MM

PZC32SFCN Datasheet

Call for price


PZC31SFCN

CONN HEADER VERT 31POS 2.54MM

PZC31SFCN Datasheet

Call for price


PZC30SFCN

CONN HEADER VERT 30POS 2.54MM

PZC30SFCN Datasheet

Call for price


PZC29SFCN

CONN HEADER VERT 29POS 2.54MM

PZC29SFCN Datasheet

Call for price

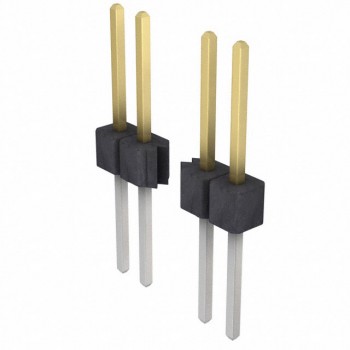

PZC28SFCN
