In Stock: 150

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.320" (8.13mm)
  • Overall Contact Length:0.738" (18.75mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PZC24SFBN

CONN HEADER VERT 24POS 2.54MM

PZC24SFBN Datasheet

Call for price


PZC23SFBN

CONN HEADER VERT 23POS 2.54MM

PZC23SFBN Datasheet

Call for price


PZC22SFBN

CONN HEADER VERT 22POS 2.54MM

PZC22SFBN Datasheet

Call for price


PZC09SFCN

CONN HEADER VERT 9POS 2.54MM

PZC09SFCN Datasheet

Call for price


PZC21SFBN

CONN HEADER VERT 21POS 2.54MM

PZC21SFBN Datasheet

Call for price


PZC08SFCN

CONN HEADER VERT 8POS 2.54MM

PZC08SFCN Datasheet

Call for price


PZC07SFCN

CONN HEADER VERT 7POS 2.54MM

PZC07SFCN Datasheet

Call for price


PZC20SFBN

CONN HEADER VERT 20POS 2.54MM

PZC20SFBN Datasheet

Call for price

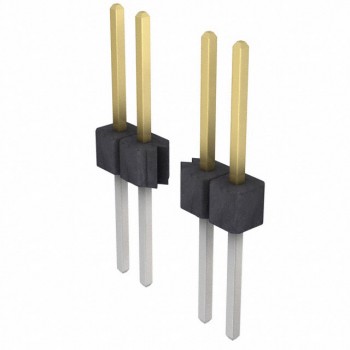

PZC06SFCN

CONN HEADER VERT 6POS 2.54MM

PZC06SFCN Datasheet

Call for price

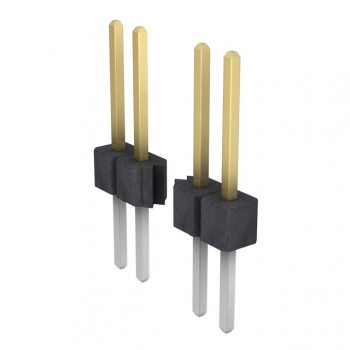

PZC19SFBN
