In Stock: 141

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.420" (10.67mm)
  • Overall Contact Length:0.838" (21.29mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PZC15SFDN

CONN HEADER VERT 15POS 2.54MM

PZC15SFDN Datasheet

Call for price


PZC14SFDN

CONN HEADER VERT 14POS 2.54MM

PZC14SFDN Datasheet

Call for price


PZC13SFDN

CONN HEADER VERT 13POS 2.54MM

PZC13SFDN Datasheet

Call for price


PZC12SFDN

CONN HEADER VERT 12POS 2.54MM

PZC12SFDN Datasheet

Call for price


PZC11SFDN

CONN HEADER VERT 11POS 2.54MM

PZC11SFDN Datasheet

Call for price


PZC10SFDN

CONN HEADER VERT 10POS 2.54MM

PZC10SFDN Datasheet

Call for price


PZC09SFDN

CONN HEADER VERT 9POS 2.54MM

PZC09SFDN Datasheet

Call for price


PZC08SFDN

CONN HEADER VERT 8POS 2.54MM

PZC08SFDN Datasheet

Call for price

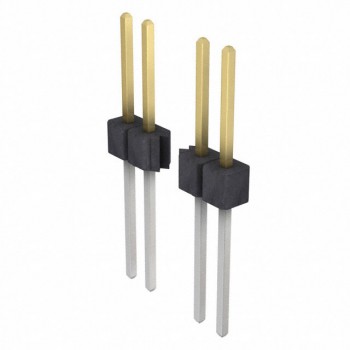

PZC07SFDN
