In Stock: 187

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:50
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.230" (5.84mm)
  • Overall Contact Length:0.560" (14.22mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PTC24DABN

CONN HEADER VERT 48POS 2.54MM

PTC24DABN Datasheet

Call for price


PTC23DABN

CONN HEADER VERT 46POS 2.54MM

PTC23DABN Datasheet

Call for price


PTC22DABN

CONN HEADER VERT 44POS 2.54MM

PTC22DABN Datasheet

Call for price


PTC21DABN

CONN HEADER VERT 42POS 2.54MM

PTC21DABN Datasheet

Call for price


PTC20DABN

CONN HEADER VERT 40POS 2.54MM

PTC20DABN Datasheet

Call for price

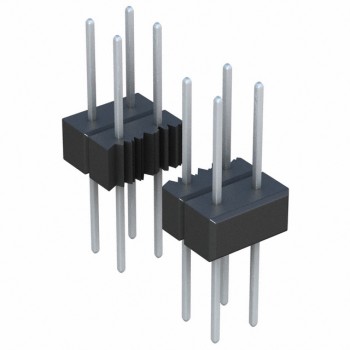

PTC19DABN
