In Stock: 172

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:50
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.420" (10.67mm)
  • Overall Contact Length:0.750" (19.05mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PTC24DADN

CONN HEADER VERT 48POS 2.54MM

PTC24DADN Datasheet

Call for price


PTC23DADN

CONN HEADER VERT 46POS 2.54MM

PTC23DADN Datasheet

Call for price


PTC22DADN

CONN HEADER VERT 44POS 2.54MM

PTC22DADN Datasheet

Call for price


PTC21DADN

CONN HEADER VERT 42POS 2.54MM

PTC21DADN Datasheet

Call for price


PTC20DADN

CONN HEADER VERT 40POS 2.54MM

PTC20DADN Datasheet

Call for price


PTC19DADN

CONN HEADER VERT 38POS 2.54MM

PTC19DADN Datasheet

Call for price


PTC18DADN

CONN HEADER VERT 36POS 2.54MM

PTC18DADN Datasheet

Call for price

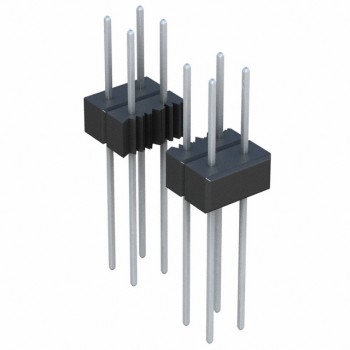

PTC17DADN
