In Stock: 155

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.620" (15.75mm)
  • Overall Contact Length:0.950" (24.13mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PTC12DAFN

CONN HEADER VERT 24POS 2.54MM

PTC12DAFN Datasheet

Call for price


PTC11DAFN

CONN HEADER VERT 22POS 2.54MM

PTC11DAFN Datasheet

Call for price


PTC10DAFN

CONN HEADER VERT 20POS 2.54MM

PTC10DAFN Datasheet

Call for price


PTC09DAFN

CONN HEADER VERT 18POS 2.54MM

PTC09DAFN Datasheet

Call for price


PTC08DAFN

CONN HEADER VERT 16POS 2.54MM

PTC08DAFN Datasheet

Call for price


PTC07DAFN

CONN HEADER VERT 14POS 2.54MM

PTC07DAFN Datasheet

Call for price


PTC06DAFN

CONN HEADER VERT 12POS 2.54MM

PTC06DAFN Datasheet

Call for price

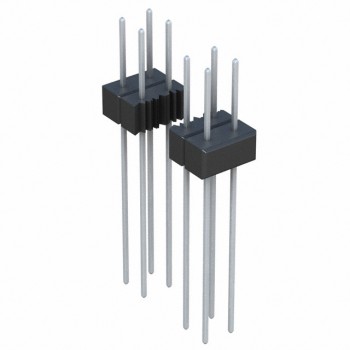

PTC05DAFN

CONN HEADER VERT 10POS 2.54MM

PTC05DAFN Datasheet

Call for price


PTC04DAFN

CONN HEADER VERT 8POS 2.54MM

PTC04DAFN Datasheet

Call for price

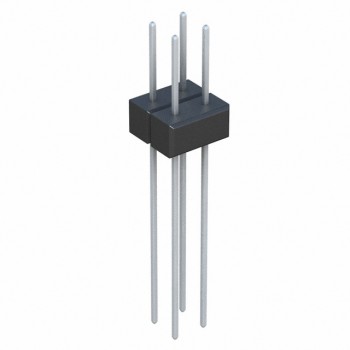

PTC02DAFN
