In Stock: 118

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:46
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.720" (18.29mm)
  • Overall Contact Length:1.050" (26.67mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PTC22DAGN

CONN HEADER VERT 44POS 2.54MM

PTC22DAGN Datasheet

Call for price


PTC21DAGN

CONN HEADER VERT 42POS 2.54MM

PTC21DAGN Datasheet

Call for price


PTC20DAGN

CONN HEADER VERT 40POS 2.54MM

PTC20DAGN Datasheet

Call for price


PTC19DAGN

CONN HEADER VERT 38POS 2.54MM

PTC19DAGN Datasheet

Call for price


PTC18DAGN

CONN HEADER VERT 36POS 2.54MM

PTC18DAGN Datasheet

Call for price


PTC17DAGN

CONN HEADER VERT 34POS 2.54MM

PTC17DAGN Datasheet

Call for price


PTC16DAGN

CONN HEADER VERT 32POS 2.54MM

PTC16DAGN Datasheet

Call for price


PTC15DAGN

CONN HEADER VERT 30POS 2.54MM

PTC15DAGN Datasheet

Call for price

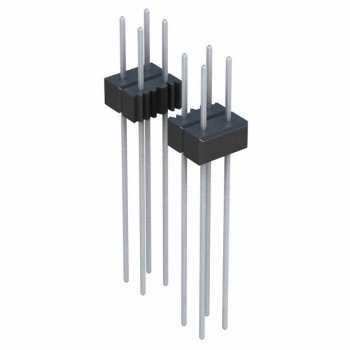

PTC14DAGN
