In Stock: 133

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:70
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.538" (13.67mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PTC34DFAN

CONN HEADER VERT 68POS 2.54MM

PTC34DFAN Datasheet

Call for price


PTC33DFAN

CONN HEADER VERT 66POS 2.54MM

PTC33DFAN Datasheet

Call for price


PTC32DFAN

CONN HEADER VERT 64POS 2.54MM

PTC32DFAN Datasheet

Call for price


PTC31DFAN

CONN HEADER VERT 62POS 2.54MM

PTC31DFAN Datasheet

Call for price

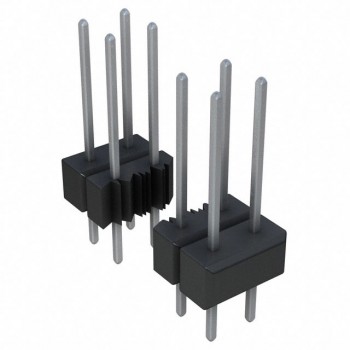

PTC30DFAN
