In Stock: 178

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:44
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.220" (5.58mm)
  • Overall Contact Length:0.638" (16.21mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PTC21DFBN

CONN HEADER VERT 42POS 2.54MM

PTC21DFBN Datasheet

Call for price


PTC20DFBN

CONN HEADER VERT 40POS 2.54MM

PTC20DFBN Datasheet

Call for price


PTC19DFBN

CONN HEADER VERT 38POS 2.54MM

PTC19DFBN Datasheet

Call for price


PTC18DFBN

CONN HEADER VERT 36POS 2.54MM

PTC18DFBN Datasheet

Call for price


PTC17DFBN

CONN HEADER VERT 34POS 2.54MM

PTC17DFBN Datasheet

Call for price


PTC16DFBN

CONN HEADER VERT 32POS 2.54MM

PTC16DFBN Datasheet

Call for price

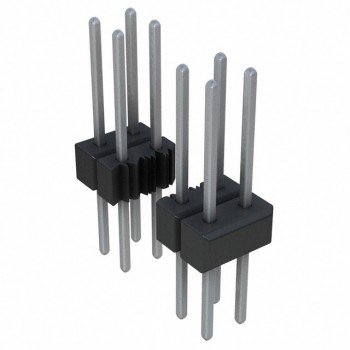

PTC15DFBN

CONN HEADER VERT 30POS 2.54MM

PTC15DFBN Datasheet

Call for price


PTC14DFBN

CONN HEADER VERT 28POS 2.54MM

PTC14DFBN Datasheet

Call for price

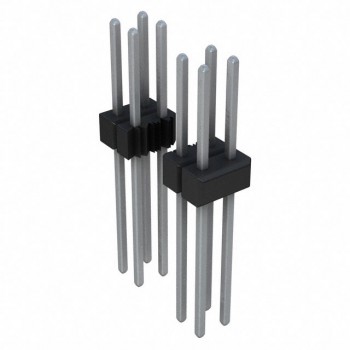

PTC36DFEN
