In Stock: 132

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:60
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.320" (8.13mm)
  • Overall Contact Length:0.738" (18.75mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


PTC29DFCN

CONN HEADER VERT 58POS 2.54MM

PTC29DFCN Datasheet

Call for price


PTC28DFCN

CONN HEADER VERT 56POS 2.54MM

PTC28DFCN Datasheet

Call for price


PTC27DFCN

CONN HEADER VERT 54POS 2.54MM

PTC27DFCN Datasheet

Call for price


PTC26DFCN

CONN HEADER VERT 52POS 2.54MM

PTC26DFCN Datasheet

Call for price


PTC25DFCN

CONN HEADER VERT 50POS 2.54MM

PTC25DFCN Datasheet

Call for price


PTC24DFCN

CONN HEADER VERT 48POS 2.54MM

PTC24DFCN Datasheet

Call for price


PTC23DFCN

CONN HEADER VERT 46POS 2.54MM

PTC23DFCN Datasheet

Call for price


PTC22DFCN

CONN HEADER VERT 44POS 2.54MM

PTC22DFCN Datasheet

Call for price

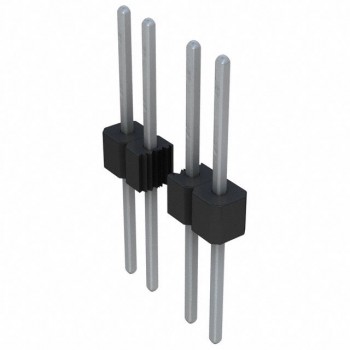

PTC21DFCN
