In Stock: 162

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:AMPMODU System 50
  • Package:Tube
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:40
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 3 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.125" (3.18mm)



  • Contact Length - Post:0.100" (2.54mm)
  • Overall Contact Length:-
  • Insulation Height:0.390" (9.91mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Card Slot
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:30VAC

Related Products


104655-8

CONN HEADER SMD 70POS 1.27MM

104655-8 Datasheet

Call for price


2510-6002UB

CONN HEADER VERT 10POS 2.54MM

2510-6002UB Datasheet

Call for price


2514-6002UB

CONN HEADER VERT 14POS 2.54MM

2514-6002UB Datasheet

Call for price


2516-6002-UB

CONN HEADER VERT 16POS 2.54MM

2516-6002-UB Datasheet

Call for price


2526-6002-UB

CONN HEADER VERT 26POS 2.54MM

2526-6002-UB Datasheet

Call for price


2550-6002UB

CONN HEADER VERT 50POS 2.54MM

2550-6002UB Datasheet

Call for price


2510-5002-UB

CONN HEADER R/A 10POS 2.54MM

Call for price

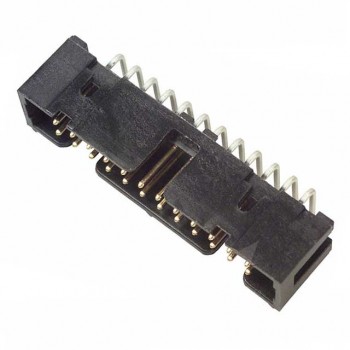

2524-5002UB

CONN HEADER R/A 24POS 2.54MM

2524-5002UB Datasheet

Call for price

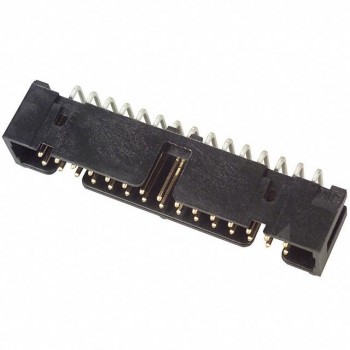

2530-5002UB

CONN HEADER R/A 30POS 2.54MM

2530-5002UB Datasheet

Call for price

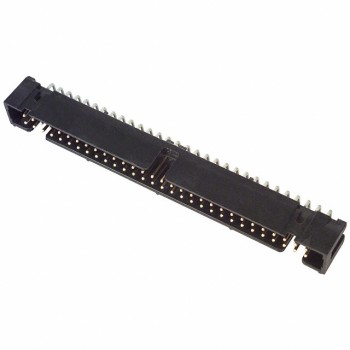

2560-5002UB
