DF13C-11P-1.25V(20)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 11POS 1.25MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet DF13C-11P-1.25V(20) Datasheet
-
ECAD Model
- Share
In Stock: 123
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:DF13
- Package:Tube
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.049" (1.25mm)
- Number of Positions:11
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 3 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.189" (4.80mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Solder Retention
- Operating Temperature:-35°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Beige
- Current Rating (Amps):1A
- Voltage Rating:150V
Related Products

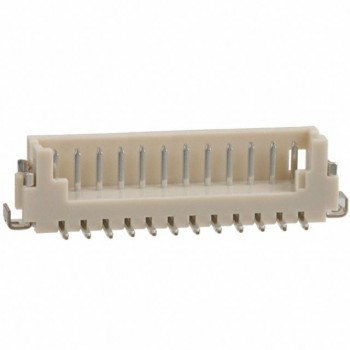

CONN HEADER SMD 12POS 1.25MM
