0533980790
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 7POS 1.25MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PicoBlade 53398
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Blade
- Pitch - Mating:0.049" (1.25mm)
- Number of Positions:7
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 3 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.185" (4.70mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Tin-Lead
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:-
- Contact Material:-
- Insulation Material:-
- Features:Solder Retention
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):-
- Voltage Rating:-
Related Products
CONN HEADER SMD 8POS 1.25MM
Call for price
CONN HEADER SMD 9POS 1.25MM
Call for price

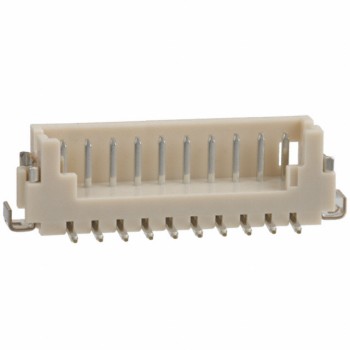

CONN HEADER SMD 10POS 1.25MM
