0353620810
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 8POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 194
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Sherlock 35362
- Package:Bulk
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:8
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Kinked Pin, Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:0.145" (3.70mm)
- Contact Length - Post:0.130" (3.30mm)
- Overall Contact Length:-
- Insulation Height:0.335" (8.51mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin-Lead
- Contact Finish Thickness - Mating:78.7µin (2.00µm)
- Contact Finish - Post:Tin-Lead
- Contact Material:Brass
- Insulation Material:Polyamide (PA66), Nylon 6/6
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):-
- Voltage Rating:125V
Related Products
CONN HEADER VERT 9POS 2MM
Call for price

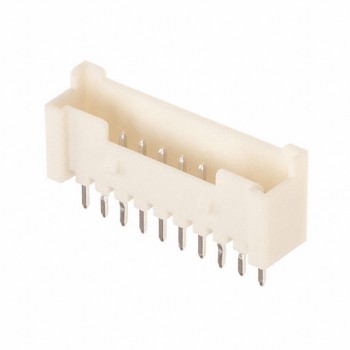

CONN HEADER VERT 10POS 2MM
Call for price

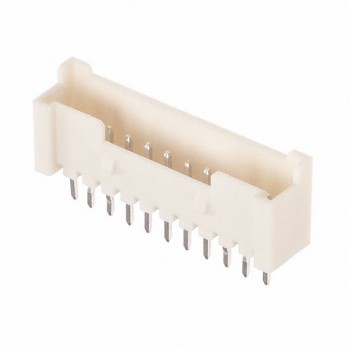

CONN HEADER VERT 11POS 2MM
Call for price
CONN HEADER VERT 12POS 2MM
Call for price
CONN HEADER VERT 13POS 2MM
Call for price
CONN HEADER VERT 14POS 2MM
Call for price
CONN HEADER VERT 15POS 2MM
Call for price
CONN HEADER VERT 20POS 2MM
Call for price

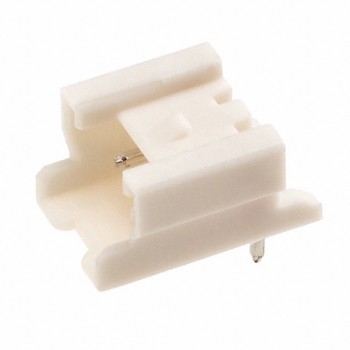

CONN HEADER R/A 2POS 2MM
Call for price

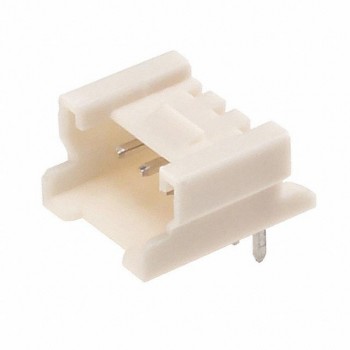

CONN HEADER R/A 3POS 2MM
