In Stock: 172

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

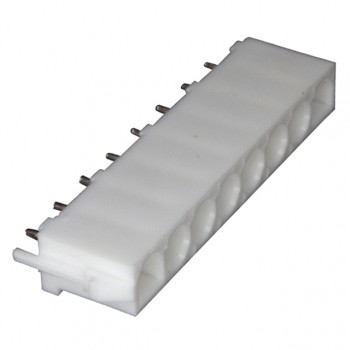

Technical Details

  • Series:Universal MATE-N-LOK
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.250" (6.35mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.155" (3.94mm)
  • Overall Contact Length:-
  • Insulation Height:0.550" (13.97mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Guide
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:White
  • Current Rating (Amps):12A
  • Voltage Rating:600VAC

Related Products

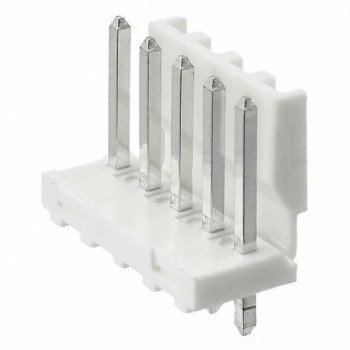

644611-5

CONN HEADER VERT 5POS 3.96MM

644611-5 Datasheet

Call for price


644617-2

CONN HEADER R/A 2POS 3.96MM

644617-2 Datasheet

Call for price


644754-4

CONN HEADER R/A 4POS 3.96MM

644754-4 Datasheet

Call for price


644754-8

CONN HEADER R/A 8POS 3.96MM

644754-8 Datasheet

Call for price


644759-8

CONN HEADER VERT 8POS 3.96MM

644759-8 Datasheet

Call for price


644760-4

CONN HEADER VERT 4POS 3.96MM

644760-4 Datasheet

Call for price


644867-6

CONN HEADER VERT 6POS 3.96MM

644867-6 Datasheet

Call for price


644892-2

CONN HEADER VERT 2POS 2.54MM

644892-2 Datasheet

Call for price

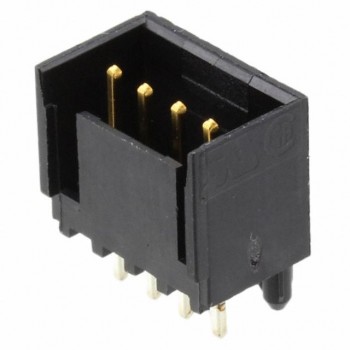

644897-4

CONN HEADER VERT 4POS 2.54MM

644897-4 Datasheet

Call for price

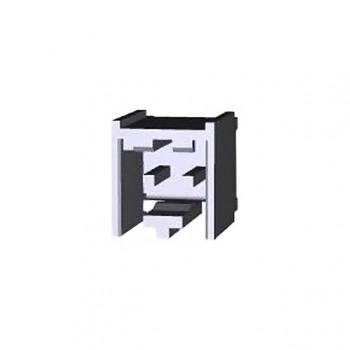

647123-2
