151212-7322-RB

3M
In Stock: 179

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:1512
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.130" (3.30mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.165" (4.20mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


151214-8422-RB

CONN HEADER VERT 14POS 2MM

151214-8422-RB Datasheet

Call for price


151216-2320-RB

CONN HEADER SMD 16POS 2MM

151216-2320-RB Datasheet

Call for price


151216-2420-RB

CONN HEADER SMD 16POS 2MM

151216-2420-RB Datasheet

Call for price


151216-7422-RB

CONN HEADER R/A 16POS 2MM

151216-7422-RB Datasheet

Call for price


151216-8422-RB

CONN HEADER VERT 16POS 2MM

151216-8422-RB Datasheet

Call for price


151218-7322-RB

CONN HEADER R/A 18POS 2MM

151218-7322-RB Datasheet

Call for price

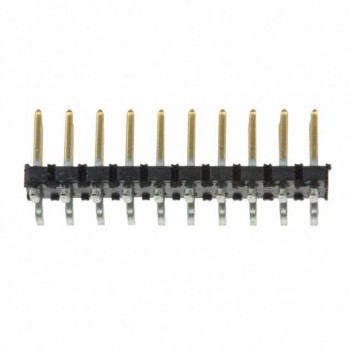

151220-2420-RB

CONN HEADER SMD 20POS 2MM

151220-2420-RB Datasheet

Call for price

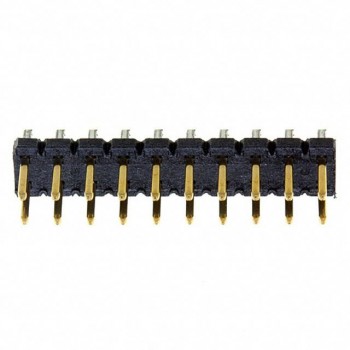

151220-8321-RB

CONN HEADER VERT 20POS 2MM

151220-8321-RB Datasheet

Call for price

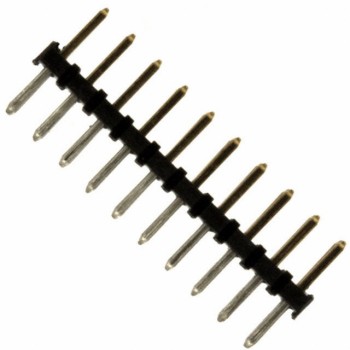

151220-8322-RB

CONN HEADER VERT 20POS 2MM

151220-8322-RB Datasheet

Call for price

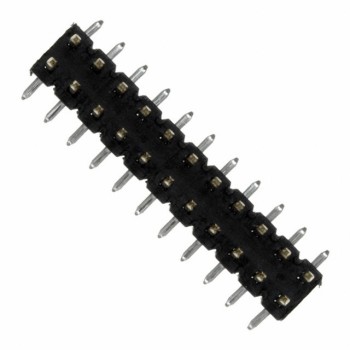

151222-2420-RB
