In Stock: 175

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:MTA-156
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:-
  • Contact Length - Mating:0.400" (10.16mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.650" (16.51mm)
  • Insulation Height:0.125" (3.18mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600VAC

Related Products


641204-8

CONN HEADER R/A 8POS 3.96MM

641204-8 Datasheet

Call for price


641207-4

CONN HEADER R/A 4POS 3.96MM

641207-4 Datasheet

Call for price


641207-6

CONN HEADER R/A 6POS 3.96MM

641207-6 Datasheet

Call for price


641207-8

CONN HEADER R/A 8POS 3.96MM

641207-8 Datasheet

Call for price


641210-7

CONN HEADER R/A 7POS 3.96MM

641210-7 Datasheet

Call for price


641212-8

CONN HEADER R/A 8POS 2.54MM

641212-8 Datasheet

Call for price

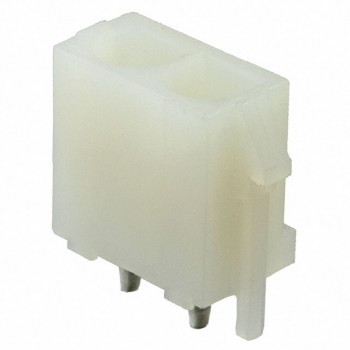

641963-2
