In Stock: 124

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:MTA-156
  • Package:Bulk
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.300" (7.62mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:-
  • Insulation Height:0.455" (11.56mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin-Lead
  • Contact Finish Thickness - Mating:150.0µin (3.81µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600VAC

Related Products


647126-5

CONN HEADER R/A 5POS 3.96MM

647126-5 Datasheet

Call for price


647141-4

CONN HEADER R/A 4POS 3.96MM

647141-4 Datasheet

Call for price


647142-2

CONN HEADER R/A 2POS 3.96MM

647142-2 Datasheet

Call for price


647143-3

CONN HEADER VERT 3POS 3.96MM

647143-3 Datasheet

Call for price


647143-7

CONN HEADER VERT 7POS 3.96MM

647143-7 Datasheet

Call for price

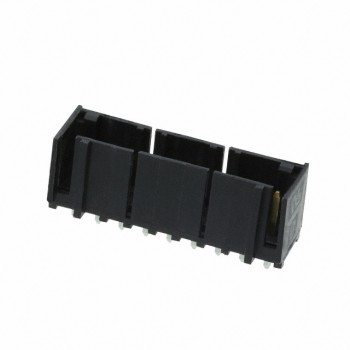

647143-9
