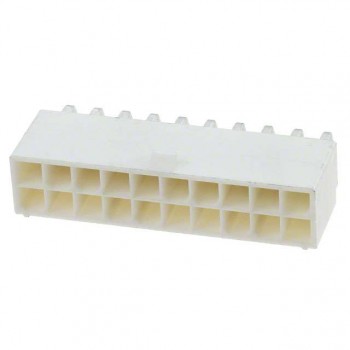

1-794514-1
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 18POS 4.2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1-794514-1 Datasheet
-
ECAD Model
- Share
In Stock: 143
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AMP-DUAC
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.165" (4.20mm)
- Number of Positions:18
- Number of Rows:2
- Row Spacing - Mating:0.165" (4.20mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.138" (3.50mm)
- Overall Contact Length:-
- Insulation Height:0.394" (10.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:150.0µin (3.81µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Lock
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-2
- Insulation Color:Natural
- Current Rating (Amps):-
- Voltage Rating:600VAC
