B15P-SHF-1AA(LF)(SN)
JST- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 15POS 2.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet B15P-SHF-1AA(LF)(SN) Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:NH
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.098" (2.50mm)
- Number of Positions:15
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Friction Lock
- Contact Length - Mating:0.236" (6.00mm)
- Contact Length - Post:0.134" (3.40mm)
- Overall Contact Length:0.496" (12.60mm)
- Insulation Height:0.126" (3.20mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA66), Nylon 6/6
- Features:-
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):3A
- Voltage Rating:250V
Related Products

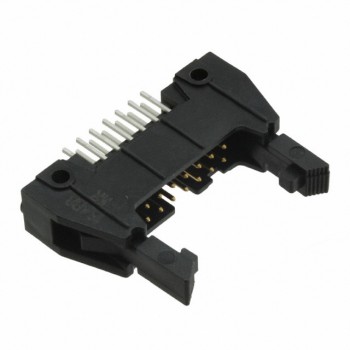

CONN HEADER R/A 20POS 2.54MM
Call for price

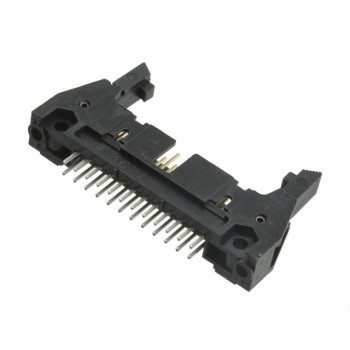

CONN HEADER VERT 50POS 2.54MM
