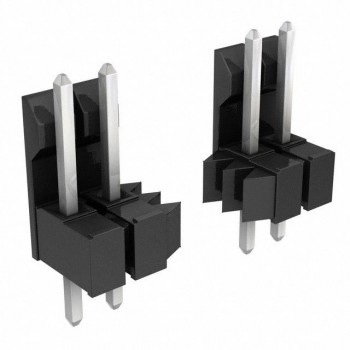

0022280052
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 5POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0022280052 Datasheet
-
ECAD Model
- Share
In Stock: 193
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:KK254, 42227
- Package:Bulk
- Part Status:Obsolete
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:5
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 1 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Friction Lock
- Contact Length - Mating:0.295" (7.49mm)
- Contact Length - Post:0.120" (3.05mm)
- Overall Contact Length:0.540" (13.72mm)
- Insulation Height:0.337" (8.56mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:-
- Insulation Material:Polyamide (PA), Nylon, Glass Filled
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
