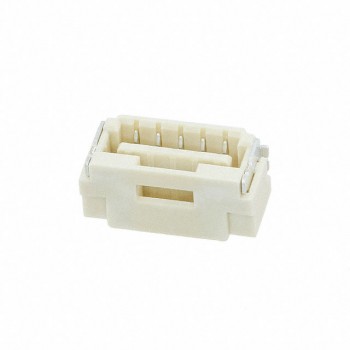

IL-Z-15PL-SMTYE-1
JAE Electronics- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD R/A 15POS 1.25MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 140
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:IL-Z
- Package:Bulk
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.049" (1.25mm)
- Number of Positions:15
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.108" (2.75mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.136" (3.46mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:-
- Contact Material:Brass
- Insulation Material:Polyphenylene Sulfide (PPS)
- Features:Solder Retention
- Operating Temperature:-40°C ~ 70°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Beige
- Current Rating (Amps):1A per Contact
- Voltage Rating:200V
