801-93-008-10-002000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 8POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 801-93-008-10-002000 Datasheet
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$1.47
- 10$1.33455
- 25$1.25286
- 50$1.19826
- 100$1.14376
- 250$1.0348
- 500$0.95311
Quote It
Technical Details
- Series:801
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:8
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.165" (4.20mm)
- Contact Length - Post:0.125" (3.18mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin-Lead
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):4.5A
- Voltage Rating:-
Related Products
CONN RCPT 24POS
- 1: $1.47000

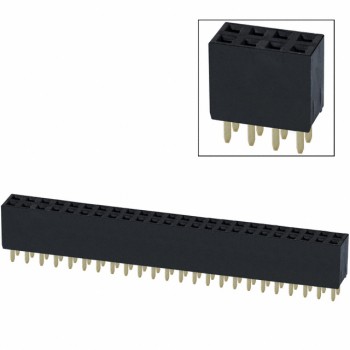

CONN SOCKET 20POS 0.1 GOLD SMD
