803-87-020-30-002101

Preci-Dip
In Stock: 189

Can ship immediately

Pricing:
  • 1$1.55097
  • 350$1.40606

Quote It

Technical Details

  • Series:803
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Socket
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:20
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Insulation Color:Black
  • Insulation Height:0.220" (5.60mm)
  • Contact Length - Post:-
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


310-87-130-01-640101

CONN SOCKET 30POS 0.1 GOLD PCB

310-87-130-01-640101 Datasheet
  • 1: $1.55120
  • 500: $1.40624

801-87-021-20-002101

CONN SOCKET 21P 0.1 GOLD PCB R/A

801-87-021-20-002101 Datasheet
  • 1: $1.55120
  • 600: $1.40623

2-146762-2

CONN RCPT 42POS 0.1 TIN-LEAD PCB

2-146762-2 Datasheet
  • 1: $1.55150
  • 1200: $1.45000

NPPN291BFLC-RC

CONN HDR 29POS 0.079 GOLD SMD

NPPN291BFLC-RC Datasheet
  • 1: $1.55165
  • 1000: $ 1.55165

NPPN291BFLD-RC

CONN HDR 29POS 0.079 GOLD SMD

NPPN291BFLD-RC Datasheet
  • 1: $1.55165
  • 1000: $ 1.55165

853-87-020-30-001101

CONN SOCKET 20POS 0.05 GOLD SMD

853-87-020-30-001101 Datasheet
  • 1: $1.55204
  • 200: $1.55204

310-83-113-01-609101

CONN SOCKET 13POS 0.2 GOLD PCB

310-83-113-01-609101 Datasheet
  • 1: $1.55269
  • 350: $1.38551

851-87-020-30-001101

CONN SOCKET 20POS 0.05 GOLD SMD

851-87-020-30-001101 Datasheet
  • 1: $1.55281
  • 240: $1.55281

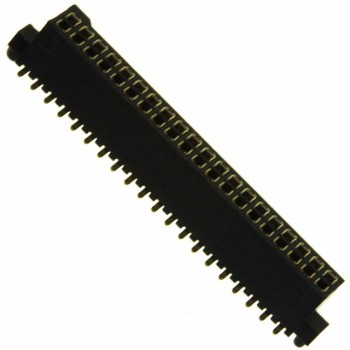

SFH31-NPPB-D20-SP-BK
