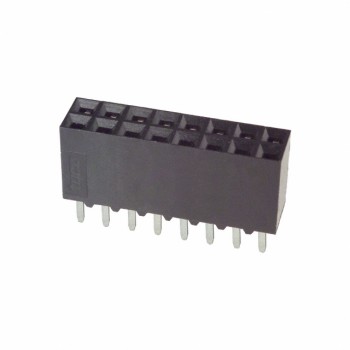

90310-034

Technical Details

• Series:Minitek®
• Package:Tube
• Part Status:Active
• Connector Type:Receptacle
• Contact Type:Female Socket
• Style:Board to Board
• Number of Positions:34
• Number of Positions Loaded:All
• Pitch - Mating:0.079" (2.00mm)
• Number of Rows:2
• Row Spacing - Mating:0.079" (2.00mm)
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Latch Lock

• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:8.00µin (0.203µm)
• Insulation Color:Beige
• Insulation Height:0.177" (4.50mm)
• Contact Length - Post:0.047" (1.20mm)
• Operating Temperature:-
• Material Flammability Rating:UL94 V-0
• Contact Finish - Post:Tin
• Mated Stacking Heights:-
• Ingress Protection:-
• Features:-
• Current Rating (Amps):-
• Voltage Rating:-
