0038001408
Woodhead - Molex- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 18POS 0.1 TIN PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 0038001408 Datasheet
-
ECAD Model
- Share
In Stock: 130
Can ship immediately
Pricing:
- 1$2.31098
- 1,134$2.31098
Quote It
Technical Details
- Series:KK254, 4455
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Bottom Entry
- Contact Type:Non-Gendered
- Style:Board to Board or Cable
- Number of Positions:18
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Insulation Color:White
- Insulation Height:0.311" (7.90mm)
- Contact Length - Post:0.142" (3.60mm)
- Operating Temperature:-40°C ~ 105°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:Board Hooks
- Current Rating (Amps):4A
- Voltage Rating:250VAC
Related Products

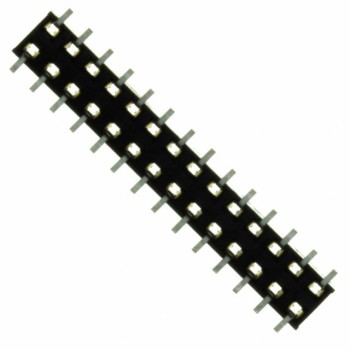

1.27 MM 80 PIN VERTICAL FEMALE H
