310-13-112-41-001000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant

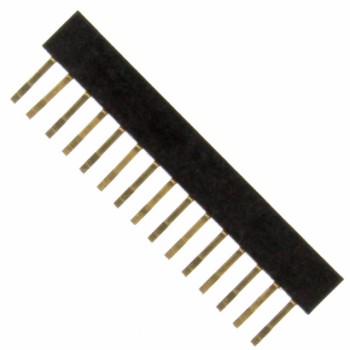

- DescriptionCONN RCPT 12POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 310-13-112-41-001000 Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
- 1$2.32
- 10$2.10039
- 25$1.97177
- 50$1.88596
- 100$1.80025
- 250$1.62878
- 500$1.50018
Quote It
Technical Details
- Series:310
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:12
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.110" (2.79mm)
- Contact Length - Post:0.125" (3.18mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):3A
- Voltage Rating:100V, 150VDC
