803-83-022-10-003101

Preci-Dip
In Stock: 154

Can ship immediately

Pricing:
  • 1$2.54188
  • 250$2.54188

Quote It

Technical Details

  • Series:803
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Socket
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:22
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Insulation Color:Black
  • Insulation Height:0.312" (7.92mm)
  • Contact Length - Post:0.121" (3.08mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


315-83-135-41-001101

CONN SOCKET 35POS 0.1 GOLD PCB

315-83-135-41-001101 Datasheet
  • 1: $2.54322
  • 230: $2.54322

801-87-035-20-101101

CONN SOCKET 18P 0.2 GOLD PCB R/A

801-87-035-20-101101 Datasheet
  • 1: $2.54341
  • 220: $2.54341

831-87-018-30-001101

CONN SOCKET 18POS 0.079 GOLD SMD

831-87-018-30-001101 Datasheet
  • 1: $2.54341
  • 220: $2.54341

NPPN232GFNP-M81RC

CONN HDR 46POS 0.079 GOLD SMD

NPPN232GFNP-M81RC Datasheet
  • 1: $2.54344
  • 1200: $ 2.54344

SFM210-LPPE-S29-SC-BK

CONN HDR 29POS 0.039 GOLD SMD

SFM210-LPPE-S29-SC-BK Datasheet
  • 1: $2.54345
  • 1000: $ 2.54345

SFM210-LPPE-S29-SD-BK

CONN HDR 29POS 0.039 GOLD SMD

SFM210-LPPE-S29-SD-BK Datasheet
  • 1: $2.54345
  • 1000: $ 2.54345

0022162091

CONN RCPT 9POS 0.1 GOLD EDGE MNT

0022162091 Datasheet
  • 1: $2.57012
  • 882: $2.57012

0022182093

CONN RCPT 9POS 0.1 GOLD PCB

0022182093 Datasheet
  • 1: $2.57012
  • 882: $2.57012

414-83-234-41-134101

CONN SOCKET 34POS 0.1 GOLD SMD

414-83-234-41-134101 Datasheet
  • 1: $2.54578
  • 230: $2.54578

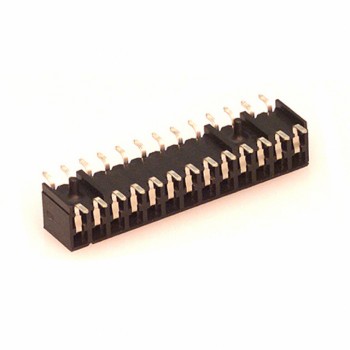

0873682624
