M50-3201545
Harwin
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 30P 0.05 GOLD PCB R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet M50-3201545 Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$2.6071
- 1,015$2.40845
Quote It
Technical Details
- Series:Archer M50
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board or Cable
- Number of Positions:30
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.136" (3.46mm)
- Contact Length - Post:0.094" (2.40mm)
- Operating Temperature:-40°C ~ 105°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Gold
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):1A
- Voltage Rating:-
Related Products

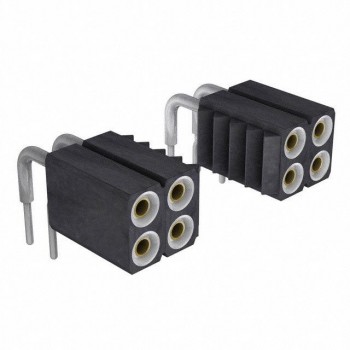

CONN SCKT 20P 0.039 GOLD SMD RA
