316-93-114-41-006000

Mill-Max
In Stock: 195

Can ship immediately

Pricing:
  • 1$2.61
  • 10$2.37134
  • 25$2.22652
  • 50$2.12964
  • 100$2.03275
  • 250$1.83915
  • 500$1.69396

Quote It

Technical Details

  • Series:316
  • Package:Tube
  • Part Status:Active
  • Connector Type:Elevated Socket
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:14
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Black
  • Insulation Height:0.236" (6.00mm)
  • Contact Length - Post:0.118" (3.00mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin-Lead
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


801-87-035-10-132101

CONN SOCKET 35POS 0.1 GOLD PCB

801-87-035-10-132101 Datasheet
  • 1: $2.61064
  • 250: $2.36668

310-87-155-41-001101

CONN SOCKET 55POS 0.1 GOLD PCB

310-87-155-41-001101 Datasheet
  • 1: $2.61159
  • 220: $2.36764

851-87-014-30-136101

CONN SOCKET 14POS 0.05 GOLD SMD

851-87-014-30-136101 Datasheet
  • 1: $2.61207
  • 300: $2.36810

855-83-012-20-001101

CONN SOCKET 12P 0.05 GOLD PCB RA

855-83-012-20-001101 Datasheet
  • 1: $2.61218
  • 220: $2.33086

851-87-028-20-001101

CONN SOCKET 28P 0.05 GOLD PCB RA

851-87-028-20-001101 Datasheet
  • 1: $2.61379
  • 160: $2.61379

801-87-031-10-005101

CONN SOCKET 31POS 0.1 GOLD PCB

801-87-031-10-005101 Datasheet
  • 1: $2.61397
  • 300: $2.36970

805-87-057-10-229101

CONN SOCKET 57POS 0.2 GOLD PCB

805-87-057-10-229101 Datasheet
  • 1: $2.61441
  • 220: $2.37005

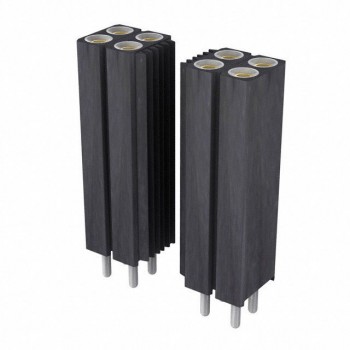

803-87-018-10-249101
