316-93-113-41-003000

Mill-Max
In Stock: 143

Can ship immediately

Pricing:
  • 1$2.63
  • 10$2.38747
  • 25$2.24154
  • 50$2.14412
  • 100$2.04659
  • 250$1.85168
  • 500$1.70549

Quote It

Technical Details

  • Series:316
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Elevated Socket
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:13
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Black
  • Insulation Height:0.315" (8.00mm)
  • Contact Length - Post:0.118" (3.00mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin-Lead
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


411-87-260-41-001101

CONN SOCKET 60POS 0.1 GOLD PCB

411-87-260-41-001101 Datasheet
  • 1: $2.63044
  • 250: $2.38472

5-1375870-1

CONN RCPT 6POS 0.031 GOLD SMD

5-1375870-1 Datasheet
  • 1: $2.63105
  • 1500: $2.21161

805-83-018-10-003101

CONN SOCKET 18POS 0.1 GOLD PCB

805-83-018-10-003101 Datasheet
  • 1: $2.63118
  • 220: $2.34805

316-87-138-41-006101

CONN SOCKET 38POS 0.1 GOLD PCB

316-87-138-41-006101 Datasheet
  • 1: $2.63159
  • 220: $2.38582

416-87-238-41-006101

CONN SOCKET 38POS 0.1 GOLD PCB

416-87-238-41-006101 Datasheet
  • 1: $2.63159
  • 220: $2.38582

803-83-014-10-249101

CONN SOCKET 14POS 0.1 GOLD PCB

803-83-014-10-249101 Datasheet
  • 1: $2.63300
  • 220: $2.34927

831-83-023-10-230101

CONN SOCKET 23POS 0.079 GOLD PCB

831-83-023-10-230101 Datasheet
  • 1: $2.63341
  • 220: $2.34968

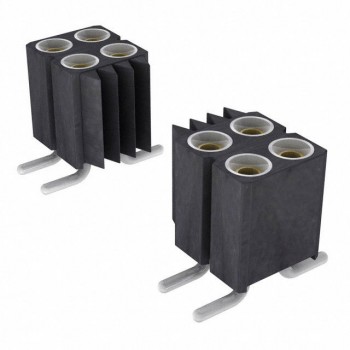

803-87-026-30-001191

CONN SOCKET 26POS 0.1 GOLD SMD

  • 1: $2.63391
  • 350: $2.38789

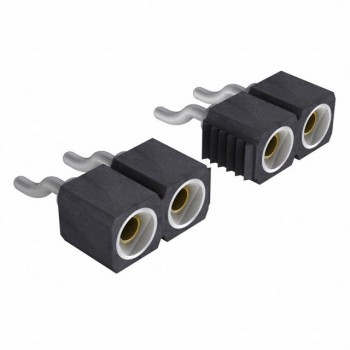

801-83-032-40-002101
