0009483136

Woodhead - Molex
In Stock: 190

Can ship immediately

Pricing:
  • 1$2.68147
  • 462$2.68147

Quote It

Technical Details

  • Series:KK396, 41815
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:13
  • Number of Positions Loaded:All
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Insulation Color:Natural
  • Insulation Height:0.449" (11.40mm)
  • Contact Length - Post:0.120" (3.05mm)
  • Operating Temperature:-40°C ~ 80°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Hooks
  • Current Rating (Amps):4.5A
  • Voltage Rating:600V

Related Products


0009485134

CONN RCPT 13P 0.156 GOLD EDGE MT

0009485134 Datasheet
  • 1: $2.68147
  • 462: $2.68147

0009485135

CONN RCPT 13POS 0.156 GOLD PCB

0009485135 Datasheet
  • 1: $2.68147
  • 462: $2.68147

801-83-035-10-101101

CONN SOCKET 18POS 0.2 GOLD PCB

801-83-035-10-101101 Datasheet
  • 1: $2.65500
  • 220: $2.36905

399-87-138-10-003101

CONN SOCKET 38P 0.1 GOLD PCB R/A

399-87-138-10-003101 Datasheet
  • 1: $2.65519
  • 210: $2.40705

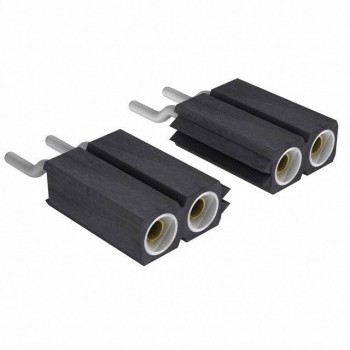

801-83-022-40-001101

CONN SOCKET 22P 0.1 GOLD SMD R/A

801-83-022-40-001101 Datasheet
  • 1: $2.65650
  • 300: $2.37040

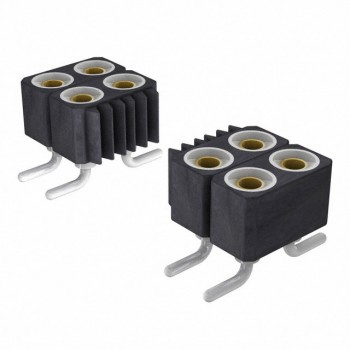

803-87-038-30-002101
