315-93-122-41-001000

Mill-Max
In Stock: 198

Can ship immediately

Pricing:
  • 1$2.7
  • 10$2.447
  • 25$2.2968
  • 50$2.197
  • 100$2.0972
  • 250$1.89744
  • 500$1.74766

Quote It

Technical Details

  • Series:315
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:22
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Black
  • Insulation Height:0.110" (2.79mm)
  • Contact Length - Post:0.108" (2.75mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin-Lead
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:100V, 150VDC

Related Products


399-43-113-10-003000

CONN RCPT 13POS 0.1 GOLD PCB R/A

399-43-113-10-003000 Datasheet
  • 1: $2.70000
  • 10: $2.44643
  • 25: $2.29633

MDF7-22S-2.54DSA(96)

CONN RCPT 22POS

  • 1: $2.70000

SFM210-LPSE-S18-ST-BK

CONN HDR 18POS 0.039 GOLD PCB

SFM210-LPSE-S18-ST-BK Datasheet
  • 1: $2.70005
  • 1000: $2.70005

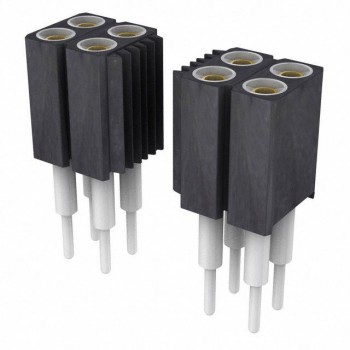

803-83-020-10-269101
