In Stock: 184

Can ship immediately

Pricing:
  • 1$2.77704
  • 1,000$2.77704

Quote It

Technical Details

  • Series:-
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:78
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Insulation Color:Black
  • Insulation Height:0.200" (5.08mm)
  • Contact Length - Post:0.124" (3.15mm)
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Gold
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:250V

Related Products


LPPB481NFFN-RC

CONN HDR 48POS 0.05 GOLD PCB

LPPB481NFFN-RC Datasheet
  • 1: $2.77704
  • 1000: $2.77704

801-83-023-40-001101

CONN SOCKET 23P 0.1 GOLD SMD R/A

801-83-023-40-001101 Datasheet
  • 1: $2.77727
  • 300: $2.47820

20021321-00050C1LF

CONN RCPT 50POS 0.05 GOLD SMD

20021321-00050C1LF Datasheet
  • 1: $2.77746
  • 700: $2.77746

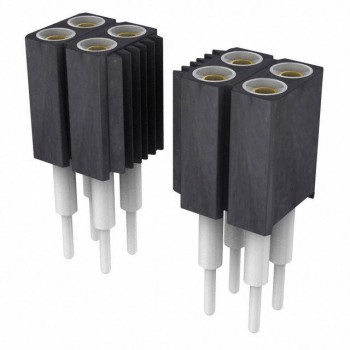

803-83-018-10-269101

CONN SOCKET 18POS 0.1 GOLD PCB

803-83-018-10-269101 Datasheet
  • 1: $2.77819
  • 210: $2.47914

0022172132

CONN RCPT 13POS 0.1 GOLD PCB

0022172132 Datasheet
  • 1: $2.80598
  • 1458: $2.80598

SFH31-NPPB-D38-SP-BK

CONN HDR 76POS 0.05 GOLD SMD

SFH31-NPPB-D38-SP-BK Datasheet
  • 1: $2.77835
  • 1000: $2.77835

317-83-135-41-005101

CONN SOCKET 35POS 0.07 GOLD PCB

317-83-135-41-005101 Datasheet
  • 1: $2.77838
  • 210: $2.47933

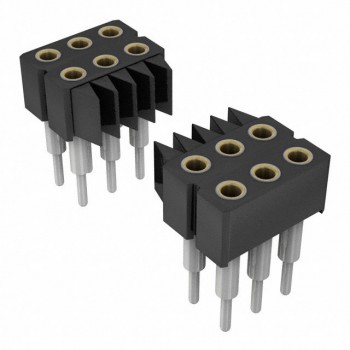

805-87-027-10-003101
