399-43-114-10-003000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 14POS 0.1 GOLD PCB R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet 399-43-114-10-003000 Datasheet
-
ECAD Model
- Share
In Stock: 162
Can ship immediately
Pricing:
- 1$2.91
- 10$2.79227
- 25$2.55947
- 50$2.44285
- 100$2.32667
- 250$2.0358
- 500$1.97762
Quote It
Technical Details
- Series:399
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:14
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Insulation Color:Black
- Insulation Height:0.100" (2.54mm)
- Contact Length - Post:0.126" (3.20mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):3A
- Voltage Rating:-
Related Products

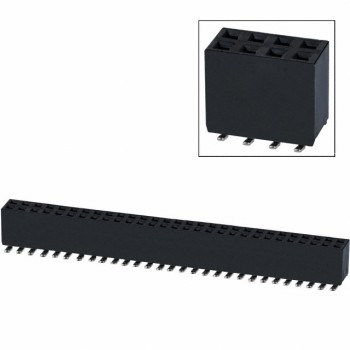

RCPT 2MM 40P R ANG MT 8AU 3.ST
