801-83-022-10-268101

Preci-Dip
In Stock: 140

Can ship immediately

Pricing:
  • 1$2.9628
  • 200$2.6438

Quote It

Technical Details

  • Series:801
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Socket
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:22
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Insulation Color:Black
  • Insulation Height:0.116" (2.95mm)
  • Contact Length - Post:0.108" (2.75mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


803-83-022-10-268101

CONN SOCKET 22POS 0.1 GOLD PCB

803-83-022-10-268101 Datasheet
  • 1: $2.96280
  • 200: $2.64380

310-87-152-01-666101

CONN SOCKET 52POS 0.1 GOLD PCB

310-87-152-01-666101 Datasheet
  • 1: $2.96300
  • 190: $2.68621

322-83-126-41-001101

CONN SOCKET 26POS 0.1 GOLD PCB

322-83-126-41-001101 Datasheet
  • 1: $2.96300
  • 200: $2.64400

15220082601000

CONN RCPT 8POS 0.05 GOLD SMD

15220082601000 Datasheet
  • 1: $2.96325
  • 280: $2.67257

SFM315-LPGE-D15-SM-BK

CONN HDR 30POS 0.039 GOLD SMD

SFM315-LPGE-D15-SM-BK Datasheet
  • 1: $2.96366
  • 1000: $2.96366

SFM315-LPGE-D15-SP-BK

CONN HDR 30POS 0.039 GOLD SMD

SFM315-LPGE-D15-SP-BK Datasheet
  • 1: $2.96366
  • 1000: $2.96366

20021321-20060C8LF

RECEPTACLE

  • 1: $2.96487

410-87-238-41-105101

CONN SOCKET 38POS 0.1 GOLD SMD

410-87-238-41-105101 Datasheet
  • 1: $2.96503
  • 306: $2.68801

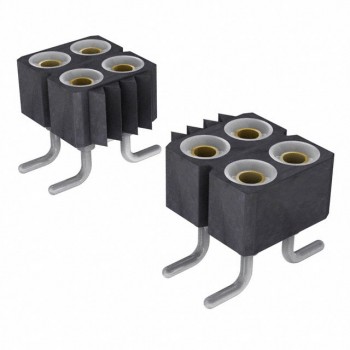

410-87-240-41-105101

CONN SOCKET 40POS 0.1 GOLD SMD

410-87-240-41-105101 Datasheet
  • 1: $2.96503
  • 306: $2.68801

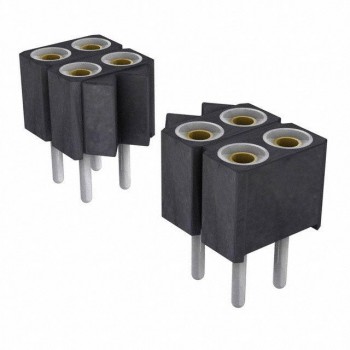

803-87-056-10-012101
