In Stock: 112

Can ship immediately

Pricing:
  • 1$2.96748
  • 400$2.744

Quote It

Technical Details

  • Series:Dubox™
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Receptacle, Bottom or Top Entry
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:26
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:78.7µin (2.00µm)
  • Insulation Color:Gray
  • Insulation Height:0.275" (6.99mm)
  • Contact Length - Post:-
  • Operating Temperature:-
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:10.81mm
  • Ingress Protection:-
  • Features:Board Lock, Pick and Place
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


71607-321LF

CONN RCPT 21POS 0.1 GOLD SMD R/A

71607-321LF Datasheet
  • 1: $2.96748
  • 330: $2.74400

LPPB501NFSC-RC

CONN HDR 50POS 0.05 GOLD SMD

LPPB501NFSC-RC Datasheet
  • 1: $2.96757
  • 1000: $2.96757

0719730204

CONN RCPT 8POS 0.1 GOLD PCB R/A

0719730204 Datasheet
  • 1: $2.96757
  • 2544: $2.96757

LPPB491NFSC-RC

CONN HDR 49POS 0.05 GOLD SMD

LPPB491NFSC-RC Datasheet
  • 1: $2.96757
  • 1000: $2.96757

LPPB491NFSD-RC

CONN HDR 49POS 0.05 GOLD SMD

LPPB491NFSD-RC Datasheet
  • 1: $2.96757
  • 1000: $2.96757

LPPB501NFSD-RC

CONN HDR 50POS 0.05 GOLD SMD

LPPB501NFSD-RC Datasheet
  • 1: $2.96757
  • 1000: $2.96757

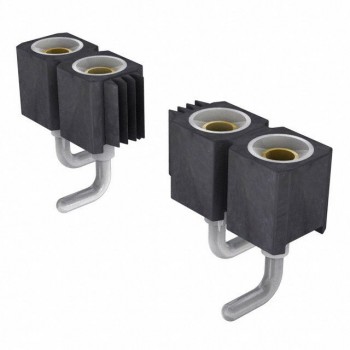

801-83-026-30-002101
