801-83-019-65-001101

Preci-Dip
In Stock: 115

Can ship immediately

Pricing:
  • 1$3.0436
  • 300$2.71613

Quote It

Technical Details

  • Series:801
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Socket
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:19
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Insulation Color:Black
  • Insulation Height:0.276" (7.00mm)
  • Contact Length - Post:0.110" (2.79mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


310-83-128-01-609101

CONN SOCKET 28POS 0.2 GOLD PCB

310-83-128-01-609101 Datasheet
  • 1: $3.04400
  • 180: $2.92072

87987-7

CONN RCPT 7POS 0.156 TIN PCB R/A

87987-7 Datasheet
  • 1: $3.04425
  • 1620: $2.78696

803-87-032-20-001101

CONN SOCKET 32P 0.1 GOLD PCB R/A

803-87-032-20-001101 Datasheet
  • 1: $3.04432
  • 264: $2.75977

426-83-214-41-003101

CONN SOCKET 14POS 0.1 GOLD PCB

426-83-214-41-003101 Datasheet
  • 1: $3.04442
  • 190: $2.71668

NPPN282GFNP-M81RC

CONN HDR 56POS 0.079 GOLD SMD

NPPN282GFNP-M81RC Datasheet
  • 1: $3.04457
  • 1200: $ 3.04457

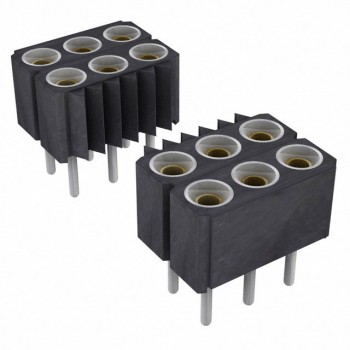

410-83-330-01-640101
