In Stock: 160

Can ship immediately

Pricing:
  • 1$3.04462
  • 210$2.81538

Quote It

Technical Details

  • Series:Dubox™
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle, Bottom or Top Entry
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:30
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:78.7µin (2.00µm)
  • Insulation Color:Blue
  • Insulation Height:0.275" (6.99mm)
  • Contact Length - Post:0.118" (3.00mm)
  • Operating Temperature:-
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:11.04mm
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


833-87-020-10-287101

CONN SOCKET 20POS 0.079 GOLD PCB

833-87-020-10-287101 Datasheet
  • 1: $3.04521
  • 190: $2.76074

833-83-022-20-001101

CONN SCKT 22P 0.079 GOLD PCB RA

833-83-022-20-001101 Datasheet
  • 1: $3.04607
  • 300: $2.71807

0901522134

CONN RCPT 34POS 0.1 TIN PCB R/A

0901522134 Datasheet
  • 1: $3.07715
  • 2808: $3.07715

316-87-144-41-006101

CONN SOCKET 44POS 0.1 GOLD PCB

316-87-144-41-006101 Datasheet
  • 1: $3.04721
  • 190: $2.76258

861-83-020-40-001191

CONN SCKT 20P 0.039 GOLD SMD RA

  • 1: $3.04724
  • 2000: $2.71912

55508-138LF

CONN RCPT 38POS 0.079 GOLD SMD

55508-138LF Datasheet
  • 1: $3.04727
  • 450: $3.04727

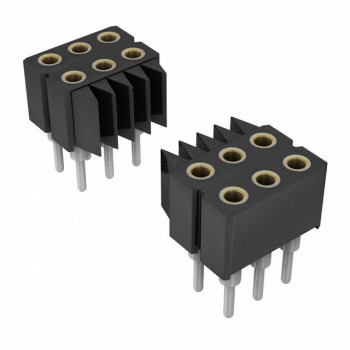

805-87-036-10-132101

CONN SOCKET 36POS 0.1 GOLD PCB

805-87-036-10-132101 Datasheet
  • 1: $3.04727
  • 300: $2.76260

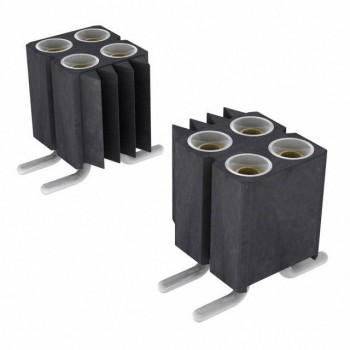

803-83-034-30-001191
