801-87-025-65-001101

Preci-Dip
In Stock: 108

Can ship immediately

Pricing:
  • 1$3.09437
  • 300$2.80537

Quote It

Technical Details

  • Series:801
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Socket
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:25
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Insulation Color:Black
  • Insulation Height:0.276" (7.00mm)
  • Contact Length - Post:0.110" (2.79mm)
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


316-83-121-41-001101

CONN SOCKET 21POS 0.1 GOLD PCB

316-83-121-41-001101 Datasheet
  • 1: $3.09700
  • 190: $2.76358

71920-323LF

CONN RCPT 23POS 0.1 GOLD PCB

71920-323LF Datasheet
  • 1: $3.09733
  • 300: $2.86407

66956-015LF

CONN RCPT 30POS 0.1 GOLD PCB

66956-015LF Datasheet
  • 1: $3.09733
  • 375: $3.09733

10131933-242ULF

CONN RCPT 42P 0.079 GOLD SMD R/A

  • 1: $3.09733
  • 390: $2.86405

10131933-344ULF

CONN RCPT 44P 0.079 GOLD SMD R/A

  • 1: $3.09733
  • 390: $2.86405

10131932-248ULF

CONN RCPT 48P 0.079 GOLD PCB R/A

  • 1: $3.09733
  • 360: $2.86406

316-83-112-41-013101

CONN SOCKET 12POS 0.1 GOLD PCB

316-83-112-41-013101 Datasheet
  • 1: $3.09742
  • 190: $2.76395

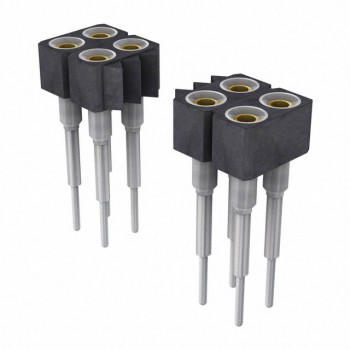

426-83-218-41-001101
